120/240Vac/48Vdc/5KW Hybrid Charging Inverter with 145 Max Voc Parallel with up to 6 units

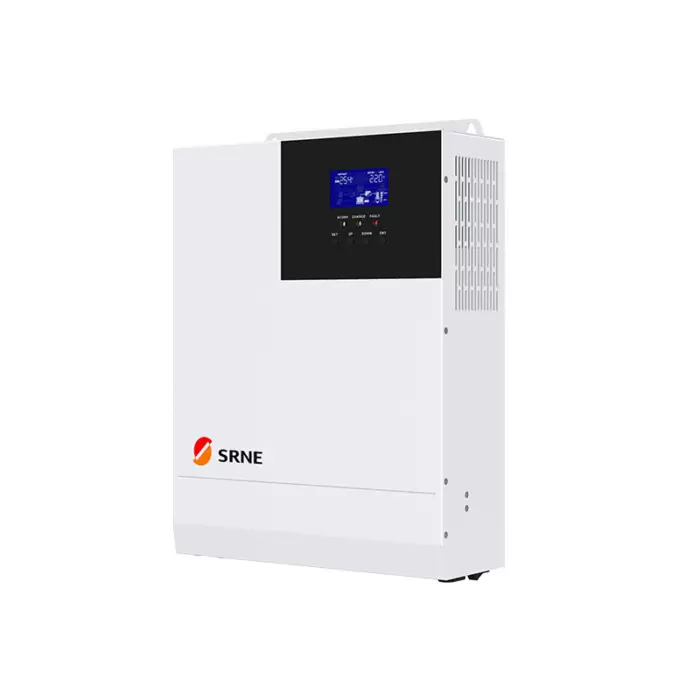

5kw off grid inverter 5 600x600 - 120/240Vac/48Vdc/5KW Hybrid Charging Inverter with 145 Max Voc Parallel with up to 6 units -HF Series is new hybrid solar charge inverter, which integrates PV charge & Grid( or Generator) charge with AC sine wave output. DPS control algorithm creating a higher response speed and higher reliability. - inv-charge, inv-48v, inv-charging - 5kw off grid inverter 5 600x600

120/240Vac/48Vdc/5KW Hybrid Charging Inverter with 145 Max Voc Parallel with up to 6 units

$1,999.00

HF Series is new hybrid solar charge inverter, which integrates PV charge & Grid( or Generator) charge with AC sine wave output.

DPS control algorithm creating a higher response speed and higher reliability.

Out of stock

Compare
SKU: SR-HFP4850S80 Categories: , ,

Description

1. Full-digital double closed loop control, combined with advanced SPWM technology to output pure sine wave.
2. Two output modes: mains electricity bypass and inverter output or uninterrupted power supply.
3. Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV & Mains Electricity hybrid charging.
4. Advanced MPPT technology with 99.9% efficiency.
5. User-defined charging parameters setting (voltage, current and mode), and suitable for various types of energy storage batteries.
6. Rocker switch for AC output control.
7. Power saving mode, reduce no-load loss.
8. Intelligent variable-speed fan to efficiently dissipate heat and extend system lifespan.
9. Lithium battery activation function, allows lead-acid battery and lithium battery use.
10. All-around protection for solar panels includes overload and short circuit protection, under-voltage and over-voltage protection and reverse polarity protection.
11. Support variety of user-friendly communication modules, such as RS485 (GPRS, WiFi, Bluetooth), CAN and USB etc., and feasible to connect with computer and mobile phone to realize remote control.
12. Expandable for up to 6 units in parallel operation.
ModelsHFP4850S80
AC mode
Rated input voltage120Vac
Input voltage range90Vac-280Vac ±2%
Frequency50Hz/ 60Hz (auto-sensing)
Parallel connection

Frequency Range

Available for 6 units parallel connection

47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz);

Overload/short circuit protectionBreaker
Efficiency>95%
Conversion time (bypass and inverter)10ms (Typical value)
AC reverse protectionyes
Maximum bypass overload current40A
Inverting mode
Output voltage waveformPure sine wave
Rated output power(VA)5000
Rated output power(W)5000
Power factor1
Rated output voltage (Vac)120Vac
Output voltage error±5%
Output frequency range (Hz)50Hz ± 0.3Hz/60Hz ± 0.3Hz
Efficiency>90%


Overload protection

(102%<load<125%) ±10%:=”” reporting=”” error=”” and=”” turn=”” off=”” the=”” output=”” after=”” 5=”” minutes<=”” span=””> (125%<load<150%) ±10%:=”” reporting=”” error=”” and=”” turn=”” off=”” the=”” output=”” after=”” 10=”” seconds<=”” span=””>; Load>150% ±10%: reporting error and turn off the output after 5 seconds;</load<150%)></load<125%)>
Peak power10000VA
Loaded motor capacity4HP
Output short-circuit protectionBreaker
Specification of bypass breaker40A
Rated battery input voltage48V (minimum start voltage 44V)
Battery voltage range40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm/turnoff voltage/overvoltage alarm/overvoltage restoration…settable LCD screen)
Power saving mode

AC charge

Load ≤25W
Battery typeLead acid or lithium battery
Maximum charge current60A
Charge current error± 5Adc
Charge voltage range40 –58Vdc
Short-circuit protectionCircuit breaker and blown fuse
Breaker specification40A
Overcharge protectionAlarm and turn off charging after 1 minute
Solar charge
Maximum PV opencircuit voltage (VOC)145Vdc
PV operation voltage range60-145Vdc
MPPT voltage range60-115Vdc
Battery voltage range40-60Vdc
Maximum output power4200W
Charge current range of solar energy (settable)0-80A
Charge short-circuit protectionBlown fuse
Wiring protection

Authentication specification

Reverse polarity protection
Specification authenticationCE(IEC/EN62109-1,-2)、ROHS2.0
EMC authentication gradeEN61000
Operation temperature range-15°C to 55°C
Storage temperature range-25°C ~ 60°C
Humidity range5% to 95% (Conformal coating protection)
Noise≤60dB
Thermal dissipationForced air cooling, variable speed of fan
Communication interfaceUSB/RS485(Bluetooth/WiFi/GPRS)/Dry node control
Dimension (L*W*D)430mm*338mm*126mm
Weight (kg)10



Additional information

Weight10 kg
