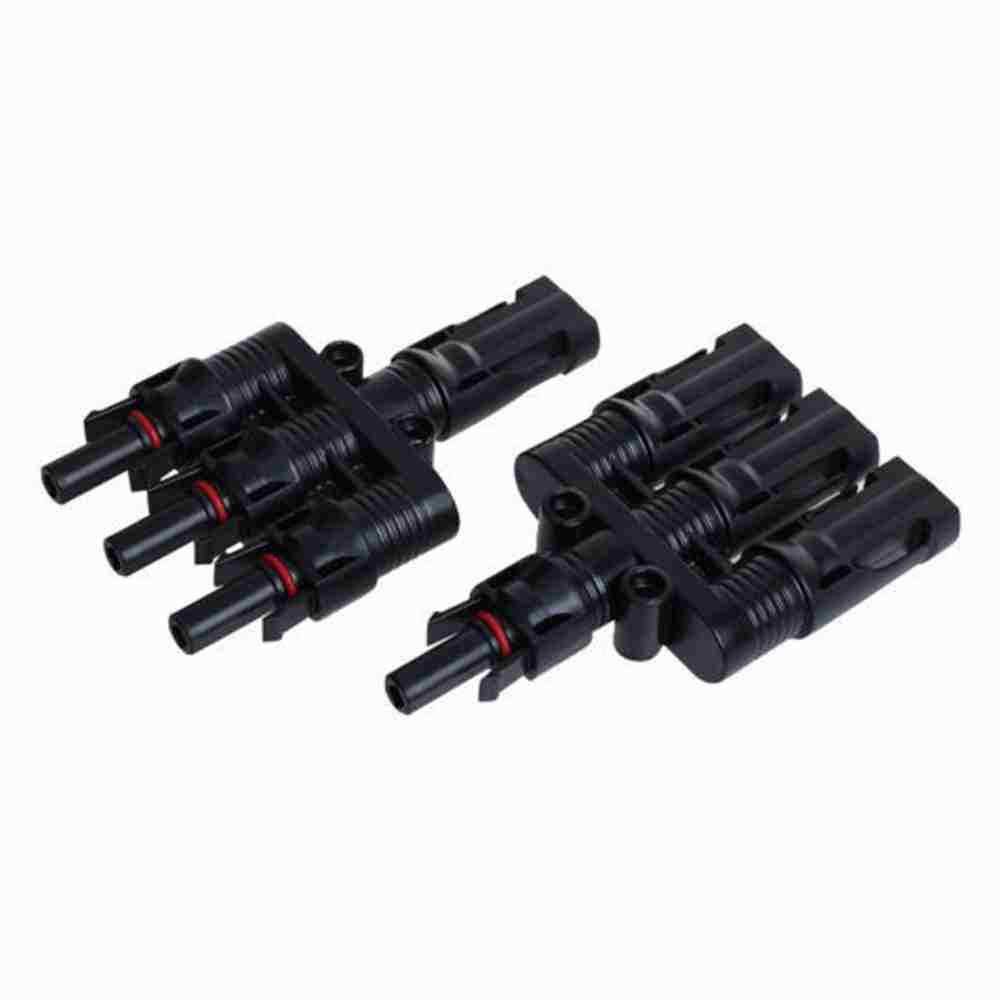

MC4 Compatible 3 Way Connector Pair

$16.99

Compare
SKU: UPCON-MC43-PS-0001 Categories: ,

Description

TECHNICAL SPECIFICATIONS- VOLTAGE AND CURRENT RATING

  • Rated Voltage : 1000V DC/ UL600V DC
  • Rated current : 30A
  • Suitable cable cross section : 14AWG-10AWG
  • Pin dimension : Ø4.0mm
  • Proof voltage : 6000V AC(1 MIN)/ UL 2200V DC (1MIN)
  • Polution degree : 2
  • Protection class : Class 2
  • Contact Material : Copper, Tin plated
  • Contact Resistance : ≤ 53
  • Degree of protection : IP 68
  • Withdrawal Force : ≥ 50N
  • Insertion force : ≤ 50N
  • Temprature range : -40˚ C~+85˚ C
  • Flame class : UL94V-0

Additional information

Weight.125 kg
Dimensions10 × 12 × 3 cm
