Description
| SILFAB SOLAR 285W MONO SOLAR PANEL – SLA285M |
| Silfab Solar, 285w Monocrystalline Solar Panel, 1000VDC, GZX Connector MC4 Comparable, SLA285M The Silfab SLA-M 60-cell monocrystalline module series is the result of the experience of the Silfab technical team, specialized in the entire photovolatic value chain, with modules produced and operating for over 33 years. The SLA-M modules are ideal for ground-mount, roof-top and solar tracking installations where maximum power density is preferred. |
Features
|
| General Information | |
| Manufacturer: | Silfab Solar |
| Product Line: | SLA-M |
| Model ID: | SLA285M |
| Certifications and Safety Ratings: |
| Mechanical Data | |
| Technology: | Monocrystalline (Mono) |

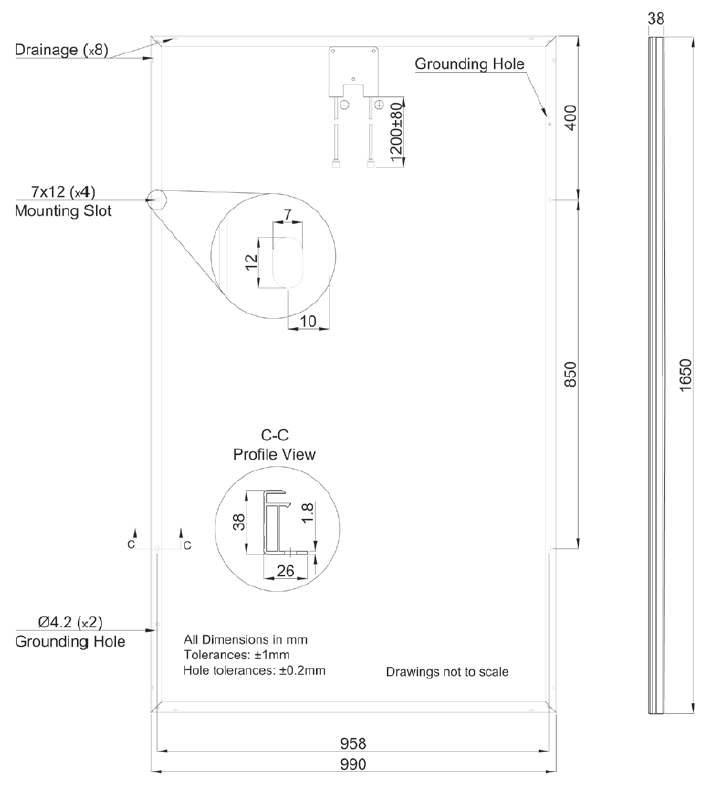

| Dimensions: | 64.96 x 38.98 x 1.50 inches (SLA285M Dimensions) |
| Weight: | 41.89 lbs |
| Maximum Surface Load: | 5400 N/m² |
| Hail Impact Resistance: | Ø 25mm at 83 km/h |
| Cells: | 60 – Si Monocrystalline – 3 or 4 Busbar – 156 x 156 mm |
| Glass: | 3.2 mm High Transmittance, Tempered, Anti-reflective Coating |
| Encapsulant: | PID – Resistant EVA |
| Backsheet: | Multi-Layer Polyester – Basted |
| Frame: | Anodized Aluminum |
| Junction Box: | 3 Diodes – 45V/12A, IP67 |
| Cables and Connectors: | 1200 mm Ø 5.7 mm (4 mm²), GZX Connector, MC4 Comparable |
| Product: | ULC ORD C1703, UL 1703, IEC 61215, IEC 61730, CEC Listed; UL Fire Rating: Type 2 (Type 1 on Request) |
| Factory: | ISO 9001:2008 |
| Operating Temperature: | -40°C to +85°C |
| Electrical Data | |
| Module Power (Pmax): | 285 Wp |
| Maximum Power Voltage (Vpmax): | 32.00 Volts |
| Maximum Power Current (Ipmax): | 8.91 Amps |
| Open Circuit Voltage (Voc): | 39.10 Volts |
| Short Circuit Current (Isc): | 9.47 Amps |
| Module Efficiency: | 17.40% |
| Maximum System Voltage: | 1000 VDC |
| Series Fuse Rating: | 15 Amps |
| Power Tolerance: | -0/+5 Wp |
Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 165 × 99 × 3.81 cm |
