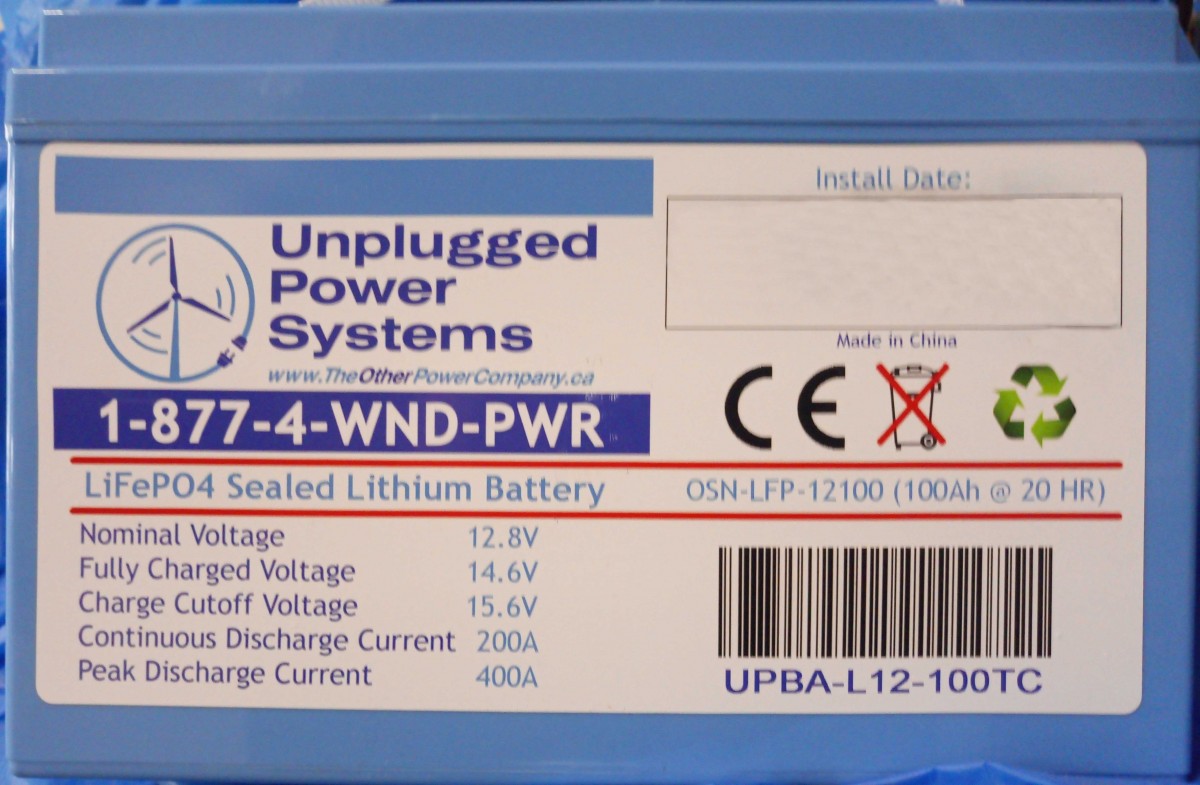

12.8V 100Ah Lithium LiFePO4 Battery

Name: 12.8V 100Ah Lithium LiFePO4 Battery
SKU: UPBA-L12-100TC
Availability: OutOfStock

$925.00

Out of stock

SKU: UPBA-L12-100TC Category: Lithium

Description

Product Name

LiFePO4 12V 100AH deep cycle Motorhome /Solar/RV battery

Highlights

Description	Value	Comments
Nominal Voltage	12.8V
Capacity	100±1Ah	At 0.2C discharge rate
Normal Current	200A
Max Continuous Discharge	400A	≤ 5min
Discharge Cut-off Voltage	8V
Charge Voltage	14.4±0.1V	Charge mode: CC/CV (use a constant current and voltage Lithium charger)
Charge Current	≤ 20A
Internal Resistance	≤ 20mΩ	From positive to negative poles
Operating Temperature Range	Charge	0°C~ +45°C
	Discharge	-20°C~ +60°C
		When above +45°C, ensure proper ventilation and heat dissipation.

Storage Temperature Range

0°C~ +40°C

Recommended long-term storage
temperature is 15°C~25°C

Test Items	Test Methods	Test Standards
Capacity Retention Rate	After standard charge of supply voltage 14.4V constant current 0.2C(A) until reduced to 0.02C (A) Cells were stored for 28 days and then discharged at 0.2C(A) to cut-off voltage	Capacity retention rate ≥ 80%
Cycle Life	1. Standard charge at 0.2C (A)	Capacity retention rate ≥ 80%
	2. Rest 0.5~1 hour
	3. Discharge at 0.2C to cut-off voltage
	4. Rest 0.5~1 hour and then repeat steps for 1500 cycles

Weight	18 kg
Dimensions	36.2 × 19.3 × 23.2 cm
