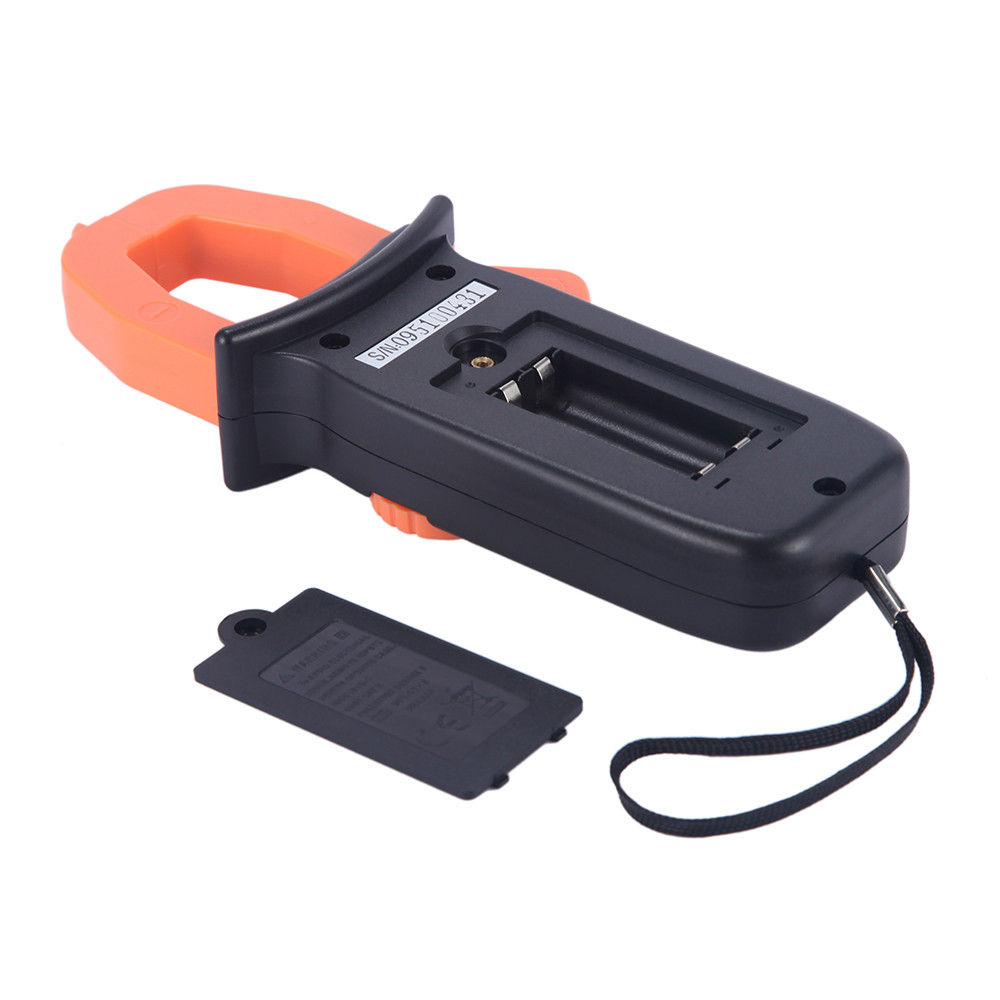

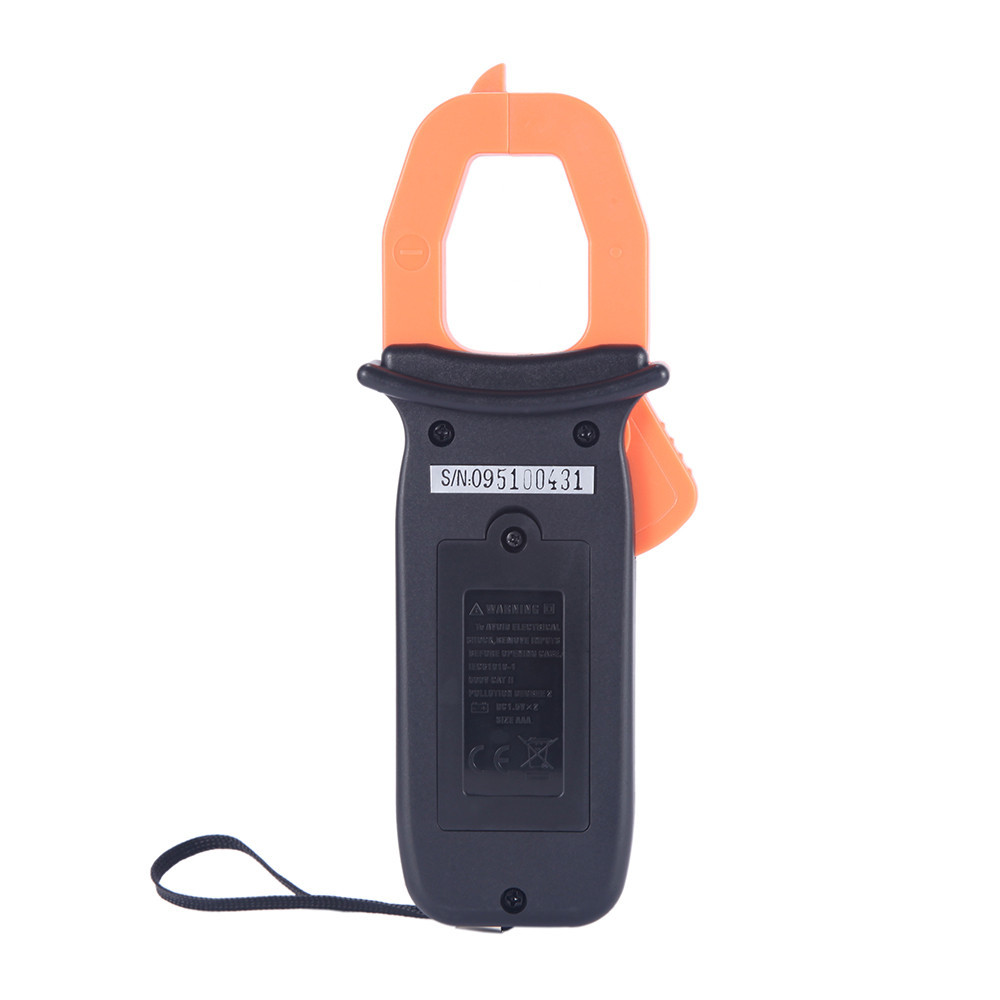

2009959 606C 600A AC/DC Clamp Meter
606C 600A AC/DC Clamp Meter
606C 600A AC/DC Clamp Meter - Image 2
606C 600A AC/DC Clamp Meter - Image 3
606C 600A AC/DC Clamp Meter - Image 4
606C 600A AC/DC Clamp Meter - Image 5
606C 600A AC/DC Clamp Meter - Image 6
606C 600A AC/DC Clamp Meter - Image 7

606C 600A AC/DC Clamp Meter

Call for Price

Compare
SKU: 606C Categories: , , Tags: ,

Description

606C AC/DC Clamp Meter

  • Instruction Manual Download

    Model606C
    SpecificationRangeBest Accuracy
    AC Voltage4V/40V/400V±(0.8%+10)
    600V±(1.0%+10)
    DC Voltage400mV/4V/40V/400V±(0.5%+4)
    600V±(1.0%+6)
    AC Current40A/600A±(2.5%+8)
    DC Current40A/600A±(2.5%+8)
    Resistance400Ω/4kΩ/40kΩ/400kΩ/4MΩ±(1.0%+5)
    40 MΩ±(1.2%+10)
    Capacitance4nF/40nF/400nF/4uF/40uF/1000uF±(5.0%+8)
    Frequency0-10MHz±(0.3%+3)
    Features
    Diode &Continuity Test√
    Data hold√
    NCV Measurement√
    True RMS√
    Operation wayAuto
    Low battery indication√
    Auto power off√
    Overload protection√
    Backlight√
    Max Display4000
    AC frequency response50-60Hz
    Sampling Rate3times/second
    Jaw Size32mm
    LCD Size35x24mm
    General Information
    Power Supply1.5V(AAA)x2
    Product ColorBlack+ Orange
    Product WeightAbout 220g
    Product Size193x73x37mm
    Standard AccessoriesTest leads, battery ,instruction manual
