Description

High-Precision Air Quality Monitor Sensor: The indoor air quality tester uses an advanced NDIR sensor, which enables fast, accurate and continuous monitoring of CO2 concentration, PM2.5, PM10, AQI, with Real-time detection of the air quality around you to Protect your health.

If the CO2 exceeds 1000 ppm or PM2.5 level >35 ug/m3, PM10 level >150 ug/m3 and the alarm is switched on (LED colors indicates of MIN/MAX/- ).

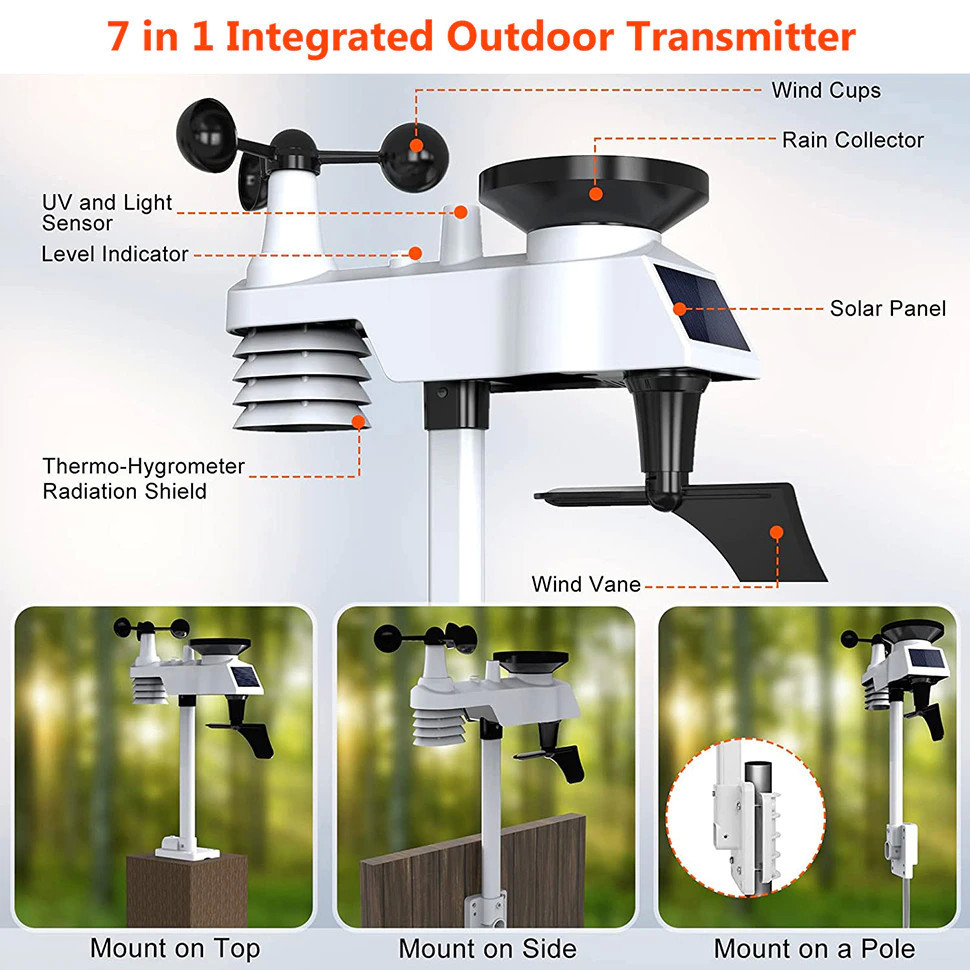

7 IN 1 OUTDOOR TRANSMITTER: The wireless instrument includes Min/Max records of the rain gauge, wind speed meter, wind vane, ultraviolet meter, Pyranometer, outdoor temperature/ humidity gauge that can transmit up to 300ft in an open field of farm or backyard. Power on with 3 AA batteries (not included) with backup solar power, and update every 16 seconds.

DIGITAL DISPLAY CONSOLE: The weather station console’s 7.3″ color screen displays all important features, including indoor and outdoor temperature and humidity, solar radiation, ultraviolet value, precipitation, and wind speed and direction, and provide weather forecasts and moon phases.The weather station can be conveniently placed anywhere, such as on a desk in a bedroom, living room, green house.

WIFI + WEATHER UNDERGROUND + WEATHER CLOUD: You can wirelessly transmit weather station data to Weather Underground, the world’s largest network of personal weather stations, and view real-time weather conditions, historical data and warnings on your smartphone with the advanced Wi-Fi connectivity option. Connect to WU (Weather Underground) or Weather Cloud. WU allows you to view, store, analyse, share and compare data from your local personal weather station.

• 7 IN 1 OUTDOOR TRANSMITTER: The wireless instrument includes Min/Max records of the rain gauge, wind speed meter, wind vane, ultraviolet meter, Pyranometer, outdoor temperature/ humidity gauge that can transmit up to 300ft in an open field of farm or backyard. Power on with 3 AA batteries (not included) with backup solar power, and update every 16 seconds.

  WIFI + WEATHER UNDERGROUND + WEATHER CLOUD: You can wirelessly transmit weather station data to Weather Underground, the world’s largest network of personal weather stations, and view real-time weather conditions, historical data and warnings on your smartphone with the advanced Wi-Fi connectivity option. Connect to WU (Weather Underground) or Weather Cloud. WU allows you to view, store, analyse, share and compare data from your local personal weather station.

  Weather Station WiFi Connection Tips

  1. Ensure that the console is plugged into AC power. The console will not connect to WiFi when powered by batteries.
  2. View WiFi symbol on the display. If WiFi connectivity is successful the WiFi icon will be displayed all the time.

  3. Ensure that your modem WiFi settings are correct (network name, and password), and Confirm your station ID and key is correct.

  ADJUSTABLE BACKLIGHT

  The backlight is adjustable in three brightness levels, adapting to the different environments of day and night. To save power, the backlight will turn off within a few seconds of being switched on, or it can be switched on permanently by setting it to suit your needs.

  Weather Station Setting Procedure

  Power Up Whole Set

  Firstly: Insert 3 AA batteries into the integrated outdoor sensors, LED flash 4 seconds and updates weather data every 16 seconds (Press the white LED button to reset wireless sensor array).



  Secondly: Power on the wireless thermo-hygrometer sensor with 2 AAA batteries, LED flash 4 seconds and updates temp and humidity data every 60 seconds.



  Last: Connect the indoor console with 5.9V DC Adapter, wait a few minutes and all data will update in the display (Don’t Touch Any Button). 3 AAA batteries installing can save the console button setting when powered off.



  Warm Tips (Outdoor Integrated Sensors)

  1. Tip the Integrated outdoor sensor back and forth several times to verify the rain gauge is not reading 0.00.



  2. Rotate the wind cups manually or with a constant speed fan to verify the wind speed is not reading 0.0.



  3. Verify the indoor and outdoor temperature or humidity match closely with the console and sensor array in the same location. Allow about 30 minutes for both readings to stabilize.



  Product configuration

  We divide the product into 2 parts for better shipment.

  Please buy the complete products by placing order for both the indoor display console , and the outdoor sensors.
