SR609C Solar Controller

$129.99

Technical specification

  • Power supply:AC1110 or 220V ±10%,50/60Hz
  • Power consumption:< 3W
  • Accuracy of temperature measuring: ± 2°C
  • Range of tank temperature measuring: 0 ~100 °C
  • Suitable power of electrical heater: ≤ 1.5KW or ≤ 3KW (optional)
  • Inputs: T1: NTC10K, B3950 sensor (≤ 135°C) for tank, (PVC cable ≤105°C),
  • T2: temperature sensor, optional
  • Outputs:H1 for electrical heater, R1: Relay.
  • Ambient temperature :-10°C ~ 50°C.
  • Water proof grade:IP40.
Compare

Description

Model SR609C
Suitable forIntegrated Pressure solar water heater

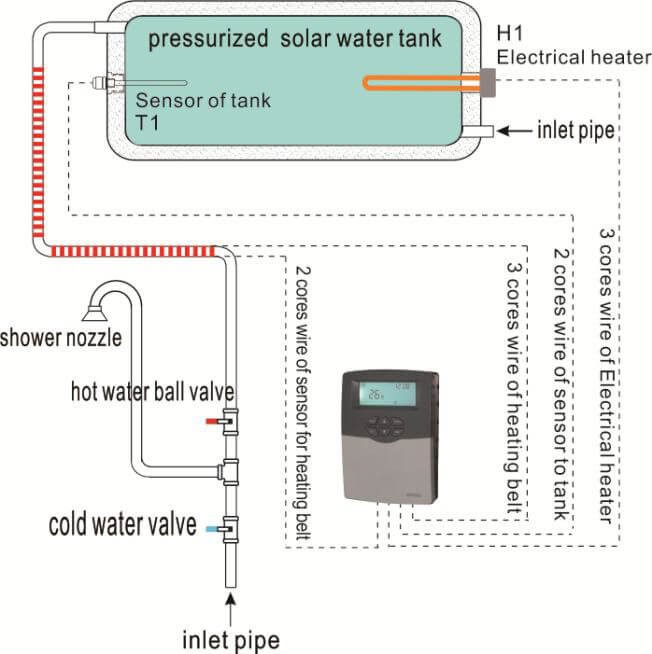

Working Principle
Technical Data1. Dimension:  170mmX128mmX40mm

2. Self power consumption:  <2W

3.Measuring accuracy of temperature: ±2℃

4.Temperature range of measurement: 0~99℃

5. Power of auxiliary electrical booster ≤2000W (standard collocation), ≤3000W (not standard, selection available)

Voltage110V-240V
Main Function

1. Time display

2. Temperature display

3. Timing heating at three time sections

4. Manual heating

5. Memory protection when power is failure

6. Trouble indication of sensor



System Diagram
Packing List



Controller——————————————————————– 1 piece

Sensor Pocket ———————————————————- 1 piece

Sensor ——————————————————————– 1 piece

Customer manual———————————————————-1 piece

M6 Plastic expansion screw——————————————– 3 pieces

Ø4*30 flat screw———————————————————— 3 pieces



Package per set 34cm*23cm*6cm



Additional information

Weight3.5 kg
Dimensions34 × 23 × 6 cm
