SR658 Solar Controller
$325.00
SR658 smart solar water heater controller 110~240V for temperature controller of split solar water heater systems including swimming pool control and data logging to Micro-SD Card
Description

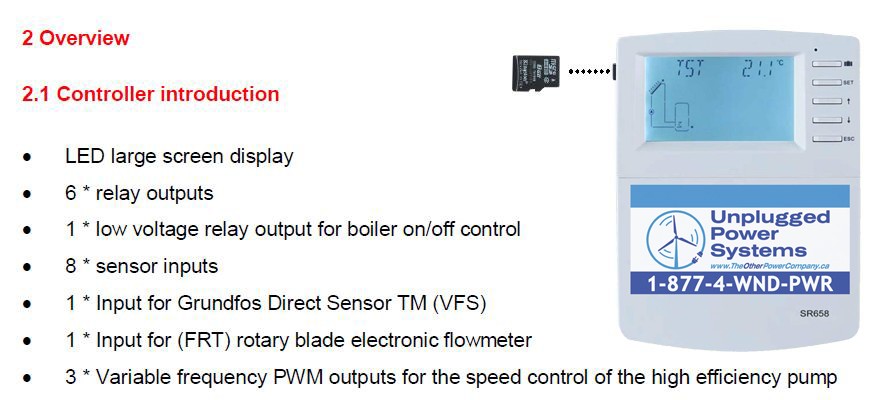

SR658 DIFFERENTIAL SOLAR CONTROLLER

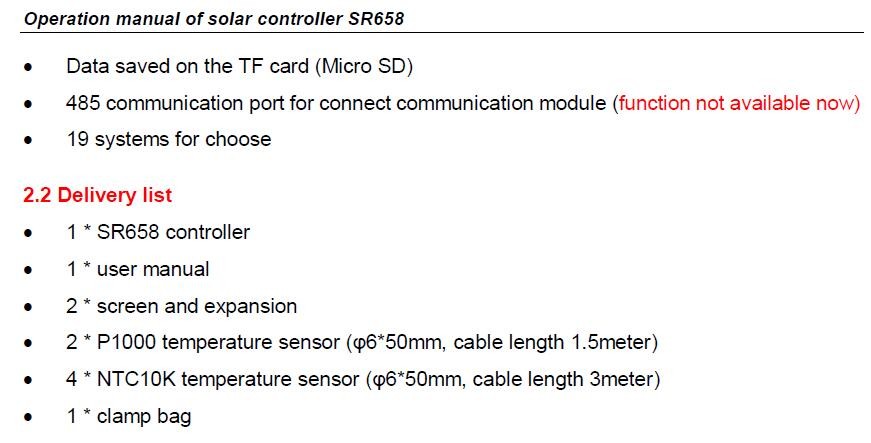

Solar Hot Water differential controller. it turns on circulating pump when collector temperature is above tank temperature by a differential temperature adjustable set point. Supply includes:
- 1 * SR658 controller
- 1 * user manual
- 2 * screws and expansion
- 2 * P1000 temperature sensor (φ6*50 mm,cable length 1.5 meter)
- 4 *NTC10K temperature sensor (φ6*50 mm,cable length 3 meter)
- 1 *clamp bag

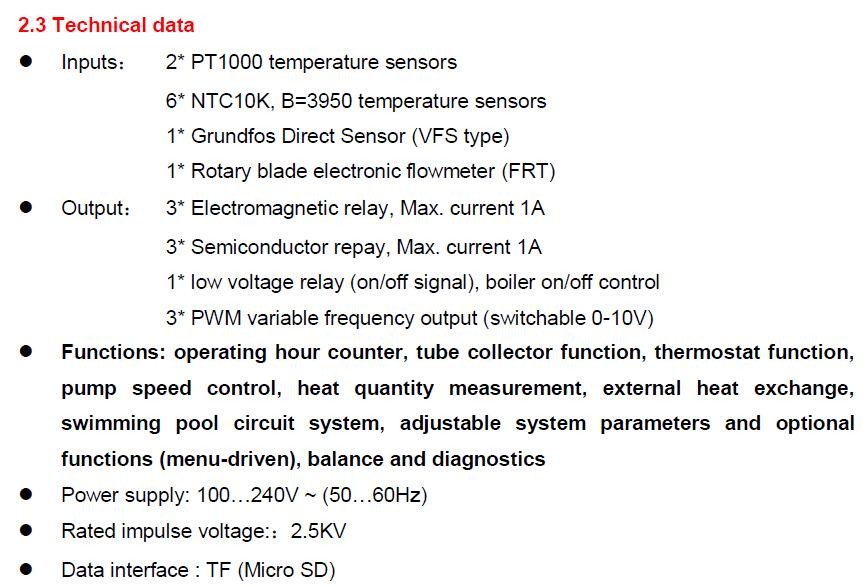

Technical data
- Inputs： 2* PT1000 temperature sensors, 6* NTC10K B=3950 temperature sensors, 1* Grundfos Direct Sensor (VFS type) ,1* Rotary blade electronic flow meter (FRT)
- Output： 3* Electromagnetic relay, Max. current 1A, 3* Semiconductor repay, Max. current 1A, 1* low voltage relay (on/off signal), boiler on/off control, 3* PWM variable frequency output (switchable 0-10V)
Solar Controller Manual: SR658
Additional information
| Weight | 1.7 kg |
|---|---|
| Dimensions | 33 × 21 × 10 cm |
