24v Submersible Deep Well Pump (Solar Compatible)

Description

Description

300W power draw designed for 3″ and larger wells

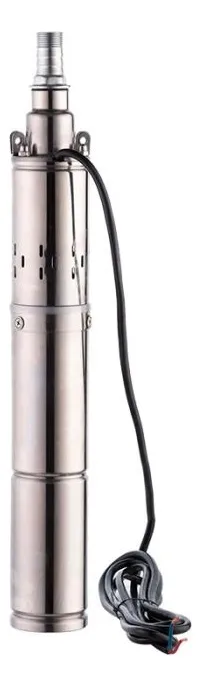

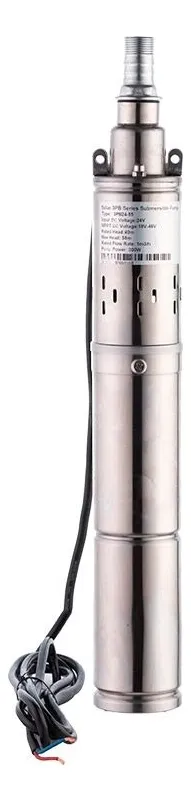

Singflo brand 3” 3JPB24-70 solar water pump is a helical type pump with a 300W power permanent magnet low rotation motor with automatic start, ideal for applications requiring large head. It is a perfect solution for DC water pumping in residential applications, agricultural use such as crop irrigation, or water supply for livestock.

It has protections against over voltage as well as overload. Constructed from primarily stainless steel, this ensures greater strength, durability and longer service life. It has an internal MPPT controller that regulates voltage to the pump, and can be used either directly from a battery or connected to a solar panel without a battery.

The Singflo 3” 3JPB24-70 solar power pump model is easy to install and suitable for well with diameter larger than 3 inches. It can pump water at a settling height of up to 70 meters or a maximum flow rate of up to 12,000 L (3170 Gallons)/day.

The submerged water pump is installed inside the water whether in a well, reservoir or even running water. It is long and cylindrical to facilitate installation in wells, but can also be installed in reservoirs. The stainless steel case provides effective cooling, making the pump efficient, robust and durable, with very low maintenance.

Additional information
Full Warranty: 1 Year
Dimensions (mm) 545 x 105 x 105
Submerged Pump Type
Maximum Height (m) 70 (230 feet)
Maximum Flow 12,000 L/day (3170 Gallons/day)
Maximum Panel Power 570 Wp when using solar directly
Pipe Diameter 1 in
Brand Singflo

Technical data:

* Performance range: Flow up to 2m3/hour

* Wide voltage 24VDC (18-48V)

* Soft start low amp @0.5A motor speed 10RPM-2800RPM,

* Max.acceptable media temp:70°C

* Pump Diameter:76mm

* DC Brushless Permanent magnet motors life: 18000hours

* Net weight: 4.25kgs; Gross weight: 5.5kgs

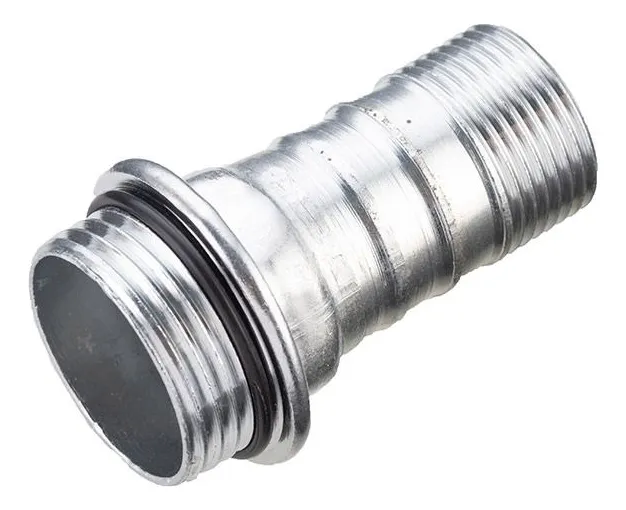

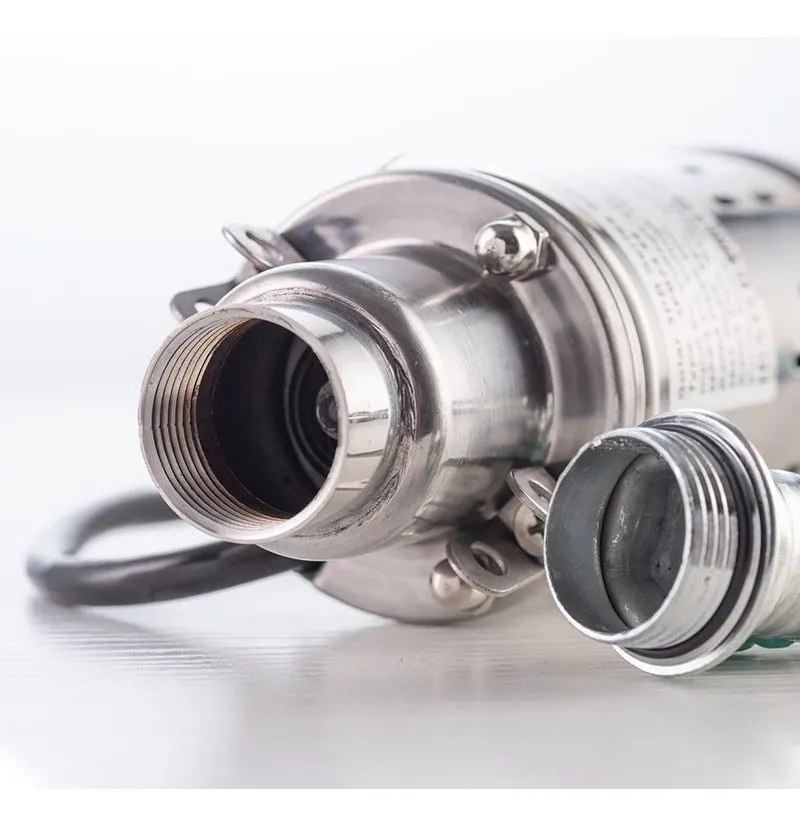

* Thread connections:1”

* Materials Stainless steel AISI 304

* Recommended solar panels of 1.3-1.5 times power draw @ Max.lift & flow based on graph below.

* JPB series submersible pump can be installed vertically or horizontally

* Package: wooden case size:54.5*10.5*10.5cm
